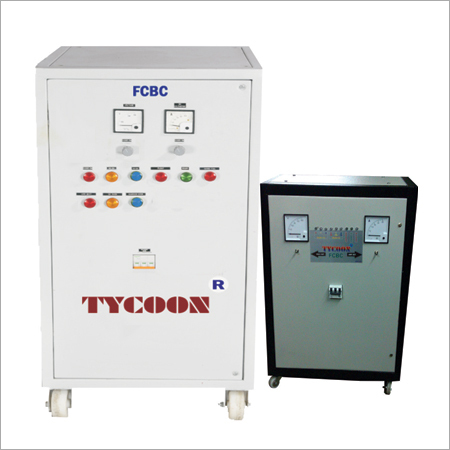

Industrial Battery Charger

Industrial Battery Charger
Industrial Battery Charger
Product Code : 22
Product Description

Our proficiency in this domain enable us to manufacture, export and supply premium quality Industrial Battery Charger that helps in charging electrical devices. In order to manufacture this charger, our professionals use supreme grade components and modern technology as per the defined industry standards. It is highly appreciated by our clients for its low power consumption, quick charging ability, rugged design and long service life. The offered Industrial Battery Charger is available at industry leading prices.

The Battery Chargers (FCBC) for Industrial uses follows the principle of phase angle control of semi controlled Thyristor Bridge. The system comprises a transformer, a Semi Controlled Thyristor Bridge, an LC filter, Control card, Feature card and Feed Back mechanism. The AC input voltage is converted to some output AC level by the main transformer which in turn is rectified by semi controlled Thyristor Module, filtered and distributed to charge the Batteries and output load. The dropper diodes are used for maintaining the output DC level so that during boost charging of Batteries the load is not harmed. The soft start and delayed on charging protects the input/output device and system itself. The FCBC is protected against AC input surge voltage and shuts off during the under and over volt of input supply. The system is also protected against reverse Battery connection.


The fields of application of FCBC are Battery plant, Railway onboard, Railway tracks, Switchgear, Engine starting and Electrical power generating plant, process industry, Telecommunication, Process industry, Steel plant, Research & design centre etc.


The FCBC Battery charger once installed performs well throughout the years irrespective of input fluctuation load variation with in the range specified.

Technical Specifications

AC Input Voltage

178V-260V for single phase, 230V Operation
310V-450V for 3 Phase, 415V Operation

AC Input Frequency


Nominal Output Voltage


Nominal Output Adjustable


Float Mode

2.25 V/cell

Boost Mode


Boost current

10% of Battery AH Capacity

Trickle current

1% of Battery AH Capacity

Output ripple

<+/-5% rms (with out battery connected)

Dynamic load

10% to 90% range +/-10% typical


78% to 90%

Protection short circuit and overload

HRC fuse, Circuit breaker and electronic


110% for 10 minutes and 200% for 200 mili seconds

Ambient condition

-10 to 40 deg centigrade optional up to 65 deg centigrade


Natural cooled


96% non condensing

Audible Noise

Less than 60dB at 1 meter


Up to 1000 mts



Mains on, Float charging, Boost charging


Output DC voltage

Analog DC voltmeter as per output voltage 96x96 mm

Output DC current

Analog DC voltmeter as per output voltage 96x96 mm


Input and Output Bolt terminated inside the front door

Dimension in mm

BxDxL: 450x350x600 for capacity 48V/50A(approx)


180 kg(approx)


Floor mounting(wheel)
