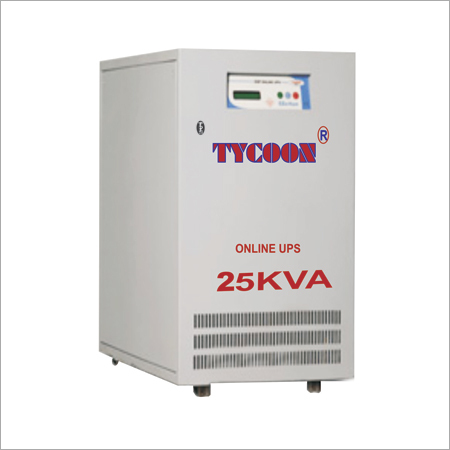

Digital Online UPS

Digital Online UPS
Digital Online UPS
Product Code : 21
Product Description

We commenced our business operation as a reputed manufacturer, exporter and supplier of highly efficient Digital Online UPS that is available in various technical specifications as per the diverse needs of the clients. It is used for providing power backup and can be easily installed. In order to manufacture this UPS, we use the advanced technology and superior-quality parts. To ensure its flawlessness, the provided Digital Online UPS is tested thoroughly on various parameters by our quality controllers.

Features:

  • Operational fluency

  • Compact design

  • Low maintenance

  • Long service life

The Tycoon online UPS is ideal for protecting data centres and telecommunications systems, IT networks and critical systems. The Tycoon online UPS is available in 10-20-30-40-60-80-100-120 kVA modles with three-phase input and output and On-Line double conversion technology. Tycoon Online UPS designed and built using state of the art technology and components, and controlled by DSP (Digital Signal Processor) microprocessors/EPROM, to provide maximum protection to the powered loads with no impact on downstream systems.

Salient Features

  • Microprocessors based PWM technology using IGBT
  • Double conversion technology
  • UPS auto self test
  • User settable output voltage(220/230/240V)
  • Static Bypass switch(optional)
  • Works on any input phase sequence
  • Field settable heavy duty charger for long backup

Advantage

  • Complete product range
  • Latest technology
  • Proven reliability
  • Competitive pricing
  • Excellent after sales service

Technical Specifications

Type

3 Phase Input-1 Phase output

Series

Tycoon Online UPS

Technology

Microprocessors based Double Conversion online UPS with true Galvanic Isolation

Model

TPS 31/7.5K

TPS 31/10K

TPS 31/15K

TPS 31/20K

TPS 31/25K

Capacity

7.5K

10K

15K

20K

25K

Input

No. of Phases

3 Phase -4 wire

Voltage Range

310V-480 Volt AC

Input Frequency range

45-55 Hz

Output


Power

6000W

8000W

12000W

16000W

20000W

Load PF range

0.8 lagging

Phase

1 Phase-2 wire (P,N)

Output Waveform

Pure sine wave

Voltage

230V+1%

Frequency

50Hz+/-0.1%

Load crest factor

>3:1

Output voltage THD

<=3% on linear load

Loading capacity

110% for 5 minutes/125% for 1 Min/150% for 10 sec

By-Pass

Capacity

125% continues

Maintenance By-pass

Available

Batteries

No.of 12V Batteries

15

Voltage

180V DC

Battery charging current

1 Amp to 10 Amp

Battery recommendation

From 7.2Ah to 200Ah

Battery self test

Automatic & Manual

General

Indication

LCD/LED Panel

Alarm

Mains Failure, Battery low, Over load short circuit

Protection

Short circuit, over voltage & under voltage protection

Cooling

Forced air cooling

UPS efficiency

>90%

Operating Temperature

0-45 Deg C

Operating Humidity

95% condensing

Accoustic Noise

<45 Db at 1 meter

UPS weight(Approx)

120 kg(With out Batteries)

131 kg(With out Batteries)

156 kg(With out Batteries)

170 kg(With out Batteries)

170 kg(With out Batteries)

Dimension(HxWxD)

(700x450x700) mm

(450x650x700) mm

(450x650x700) mm

(450x700x730) mm

(450x700x730) mm
