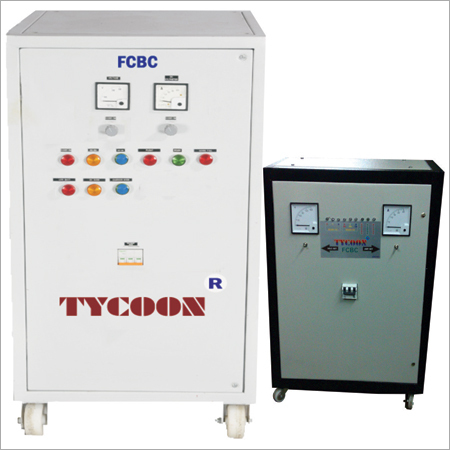

Battery Charger (FCBC)

Battery Charger (FCBC)
Battery Charger (FCBC)
Product Code : 19
Product Description

With the assistance of our professionals, we are engaged in offering highly efficient Battery Charger (FCBC) that is used for charging various equipment. This charger is manufactured by our professionals using superior-quality parts and modern technology in conformity with the international quality standards. Offered charger is highly appreciated by our clients for its low power consumption, quick charging, ruggedness and smooth operation. The provided Battery Charger (FCBC) can be bought at market leading prices.

The Battery Chargers (FCBC) for Industrial uses follows the principle of phase angle control of semi controlled Thyristor Bridge. The system comprises a transformer, a Semi Controlled Thyristor Bridge, an LC filter, Control card, Feature card and Feed Back mechanism. The AC input voltage is converted to some output AC level by the main transformer which in turn is rectified by semi controlled Thyristor Module, filtered and distributed to charge the Batteries and output load. The dropper diodes are used for maintaining the output DC level so that during boost charging of Batteries the load is not harmed. The soft start and delayed on charging protects the input/output device and system itself. The FCBC is protected against AC input surge voltage and shuts off during the under and over volt of input supply. The system is also protected against reverse Battery connection.

Scope

The fields of application of FCBC are Battery plant, Railway onboard, Railway tracks, Switchgear, Engine starting and Electrical power generating plant, process industry, Telecommunication, Process industry, Steel plant, Research & design centre etc.

Performance

The FCBC Battery charger once installed performs well throughout the years irrespective of input fluctuation load variation with in the range specified.

Technical Specifications

AC Input Voltage

178V-260V for single phase, 230V Operation
310V-450V for 3 Phase, 415V Operation

AC Input Frequency

47Hz-53Hz

Nominal Output Voltage

12V/24V/48V/60V/72V/96V/110V/120V/240V/360V

Nominal Output Adjustable

90%-120%

Float Mode

2.25 V/cell

Boost Mode

2.35V/cell

Boost current

10% of Battery AH Capacity

Trickle current

1% of Battery AH Capacity

Output ripple

<+/-5% rms (with out battery connected)

Dynamic load

10% to 90% range +/-10% typical

Efficiency

78% to 90%

Protection short circuit and overload

HRC fuse, Circuit breaker and electronic

Overload

110% for 10 minutes and 200% for 200 mili seconds

Ambient condition

-10 to 40 deg centigrade optional up to 65 deg centigrade

Cooling

Natural cooled

Humidity

96% non condensing

Audible Noise

Less than 60dB at 1 meter

Altitude

Up to 1000 mts

Features


Indication

Mains on, Float charging, Boost charging

Metering


Output DC voltage

Analog DC voltmeter as per output voltage 96x96 mm

Output DC current

Analog DC voltmeter as per output voltage 96x96 mm

Termination

Input and Output Bolt terminated inside the front door

Dimension in mm

BxDxL: 450x350x600 for capacity 48V/50A(approx)

Weight

180 kg(approx)

Mounting

Floor mounting(wheel)
